Solutions Industrial Electronics Solutions 2P Power Board for Air Conditioning

2P Power Board for Air Conditioning

應用範圍:

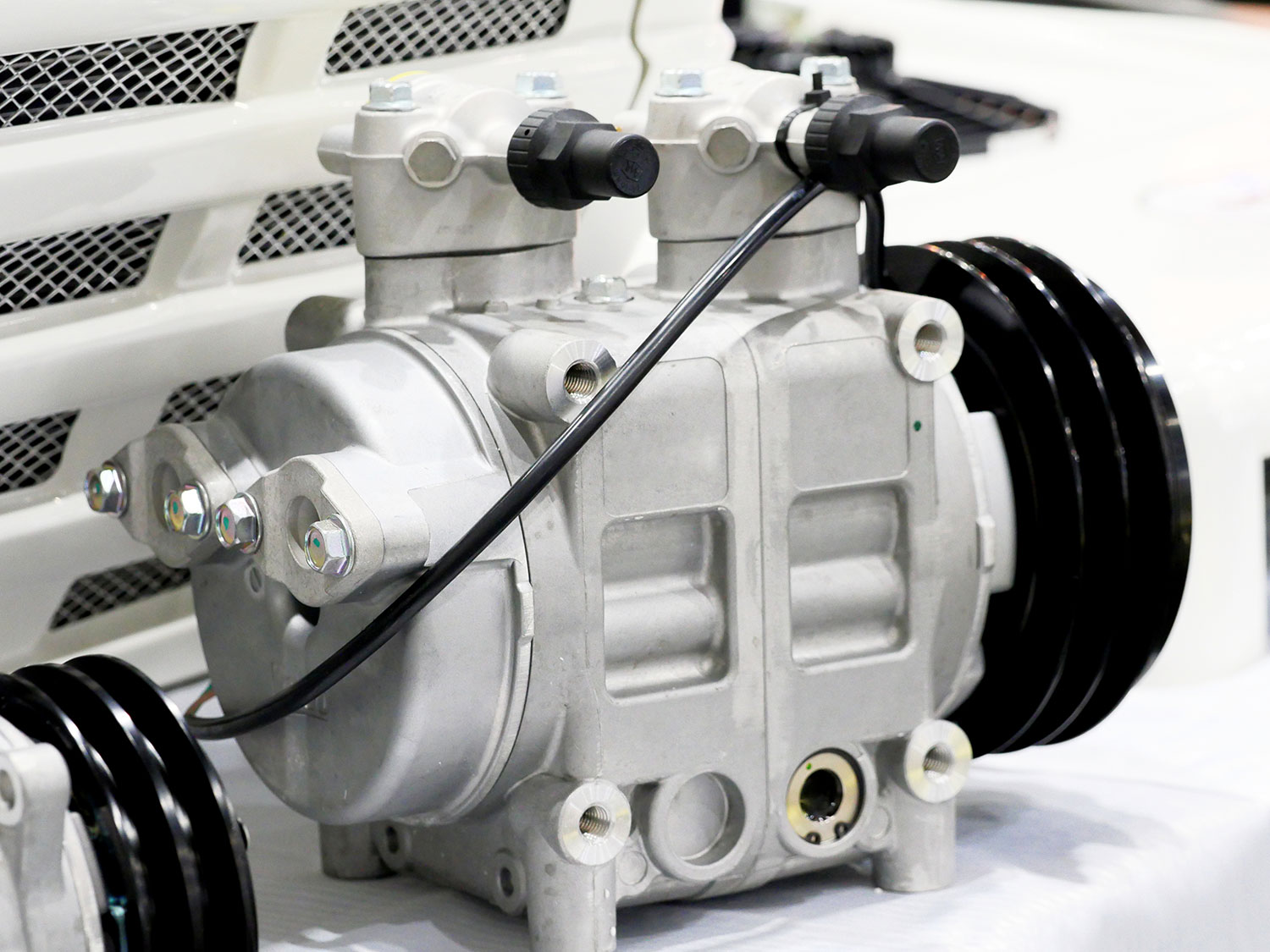

  • 空調壓縮機
  • 工業伺服電機

使用器件:
  • Infineon IKCM20L60GA
  • Infineon IKW30N60H3
  • Infineon IRS44273L

Demo規格說明:
  • Vin：65~264VAC
  • Pout：750W~3KW
  • PF>99%
  • FOC 控制算法
  • OVP：380V
  • OCP：16A（20A IPM）
  • OTP：105°C

Files Download
2P Power Board for Air Conditioning
Find More Solutions
PREV
1.5P Power Board for Air Conditioning
NEXT
Zenitron Sensor less field oriented control (FOC) motor drive evaluation board
